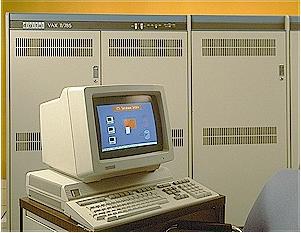

    VAX-11/785


    The VAX-11/785 was a modernized version of the original 11/780, in which some components were replaced with faster Schottky-TTL counterparts, so the whole system ran 50% faster.



    VAX 8600


    The 8600 marked a new generation of VAXen, with Schottky-TTL/ECL components, an improvement that made it 4 times as fast as the 11/780. It was Digital's most powerful machine up to that date.

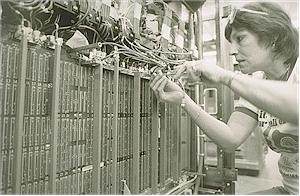

    Under construction

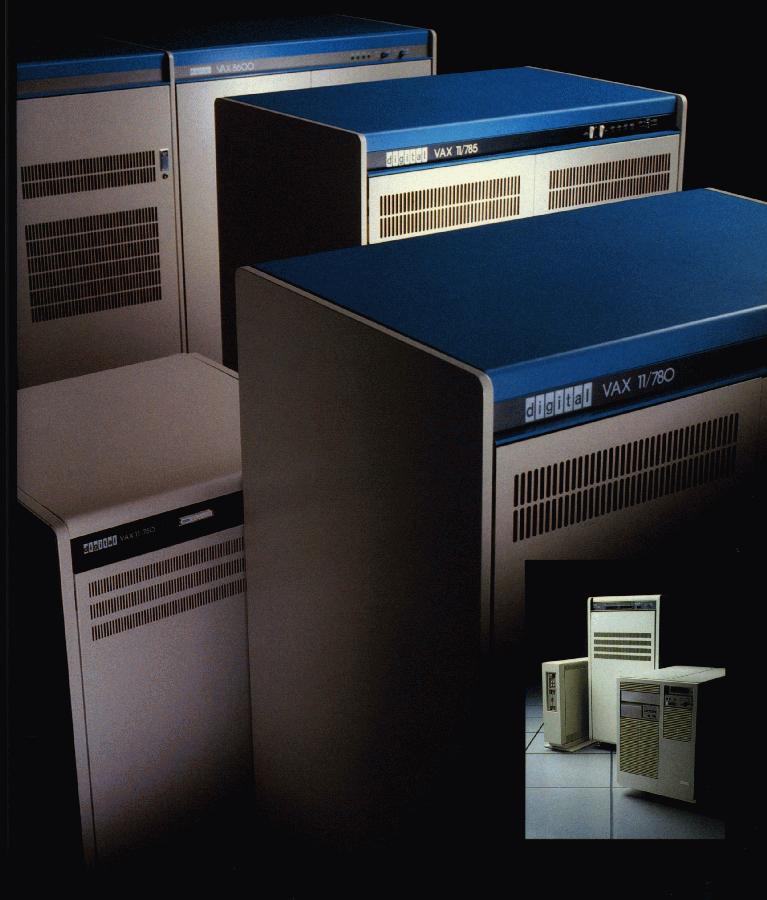

    The VAX family, 1984 (750, 780, 785, 8600, 750, 725 and a MicroVAX I)

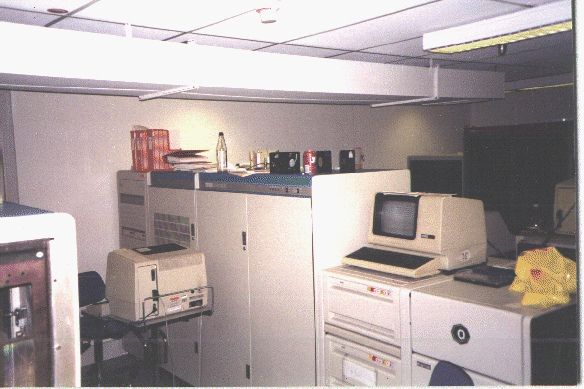

    Another machine room

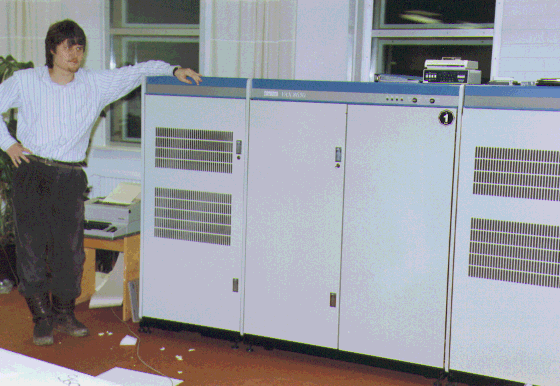

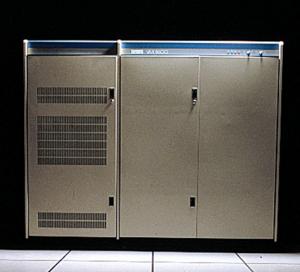

    A handsome 8600

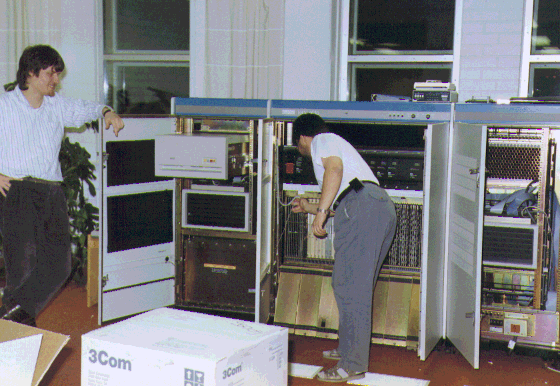

    The same machine opened up

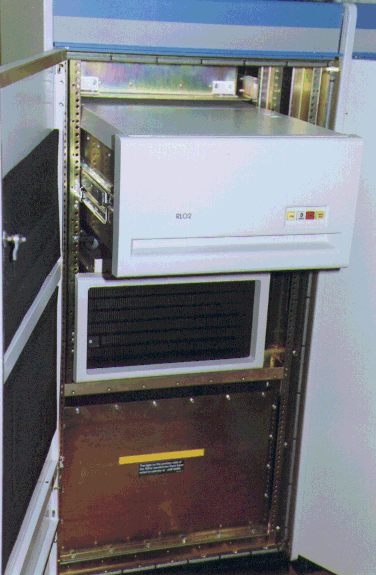

    The RL02 console media

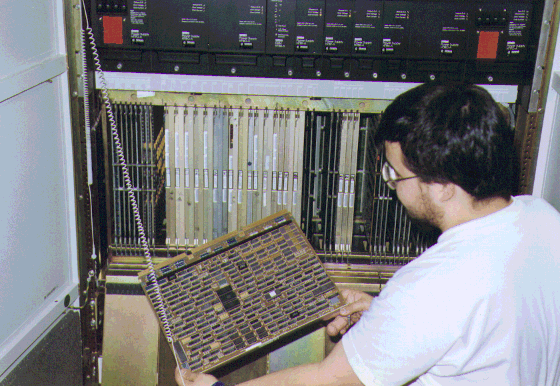

    A look at the cards




    MicroVAX I


    The first one of another new breed of VAXen: a VAX-implementation with microprocessors. The heart of the machine was two PCB's that connected to the Qbus, "borrowed" from the MicroPDP-11's. It was considered slow even at that time (0.3 VUP), yet it was the smallest VAX ever, which was a sensation.

    The VAXstation was the graphics workstation version with greyscale graphics, and single-user VMS.

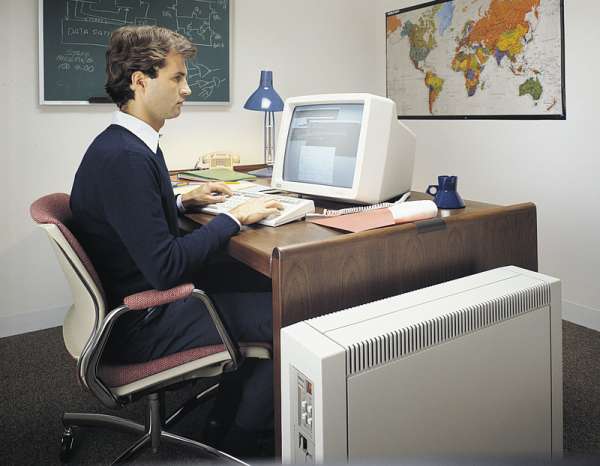

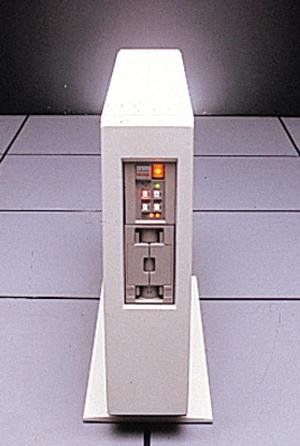

    A small picture of a small computer :-)
    VAXstation I




    Misc

    VAX-11/784: Even many of the VAXophiles didn't know about these systems: the VAX-11/784 was a four-way multiprocessor 11/780. About four or five was made of them. They were basically four 11/780 CPU's sharing one MA780 multiport memory.

    ULTRIX-32:  Digital's UNIX-clone derived from Berkeley's VM/UNIX 4.2 BSD.

    Rdb: A relational database management system for VMS.
